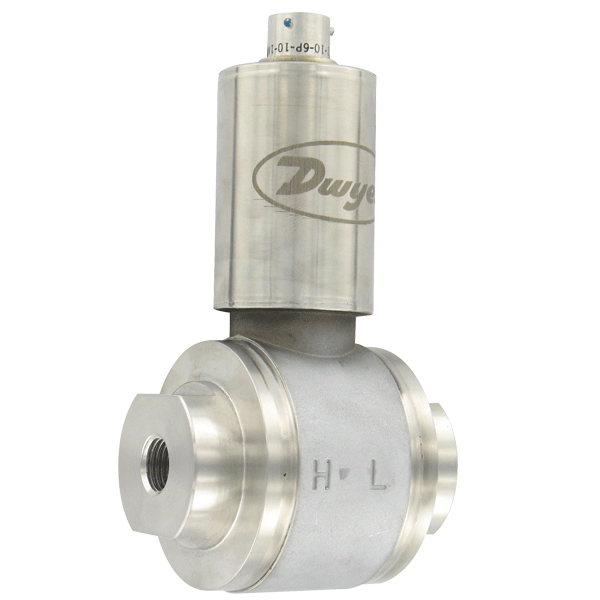

Dwyer 316濕濕差壓變送器 655A系列

量程可低至3英寸水柱,NIST溯源6點校準

655A系列316L不銹鋼液用微差壓變送器用于高靜壓場合的微差壓監測,特別適用于OEM設備,它能在過壓非常高的情況下用于低至3英寸水柱的量程范圍,精度達到0.25%。

655A系列變送器采用了先進的科技來保證高低壓口的平衡。自動焊接制造技術使它在承受很高的壓力的應用場合可靠耐用,壽命長。每個產品都帶有NIST六點校準證書。

655A系列微差壓變送器是全焊接的316不銹鋼材質,在設計中沒有采用任何O型環,特別適用于高靜壓應用場合,和保證不能泄露的應用場合。

應用及案例


?  Pump differential pressure

?  Critical process monitoring

?  High accuracy/low differential pressure OEM applications


產品特色


?  Extreme overpressure and stability at low ranges provides durable device for OEM and end-user applications

?  High-accuracy device for low differential pressure designs requiring more precise measurements in support of application

?  NIST certificate available to demonstrate high-level of performance



技術指標


Service: Compatible Gasses Or Liquids.

Wetted Materials: 316L SST.

Accuracy: ±0.25% BFSL, RSS (Combined Effect Of Non-Linearity, Hysteresis, And Repeatability).

Stability: ≤ ±0.25% FSO/Yr.

Temperature Limits: -20 To 200°F (-29 To 93°C).

Compensated Temperature Limits: 0 To 170°F (-17.8 To 76.7°C).

Pressure Limits: 1000 Psi (68.95 Bar) Continuous; 3000 Psi (206.8 Bar) Burst.

Thermal Effects: ≤ ±1.5% F.S. Over Comp. Temperature Range.

Power Requirements: 8 To 38 Vdc.

Output Signal: 4 To 20 MA.

Static Pressure Effects: On Zero: ≤ ±0.25% FSO Per 1000 Psi; On Span: ≤ ±0.5% Of Reading Per 1000 Psi.

Loop Resistance: 1500 Ohms.

Electrical Connections: Cable Exit With 24" Cable; Optional 6-Pin Connector.

Process Connections: 1/4" NPT Female.

Enclosure Rating: Designed To Meet NEMA 4X (IP66).

Mounting Orientation: Mount In Vertical Position: Zero Shifts Up To 1" ±H2O Depending On Orientation.

Response Time: < 10 MS.

Weight: 18 Oz (510 g).

Agency Approval: CE.
