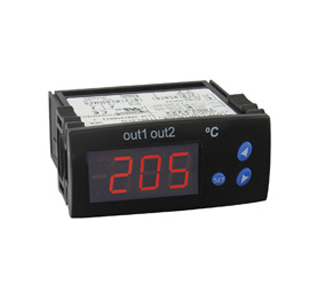

您當前的位置：首頁產品中心Dwyer 雙輸出數顯溫度開關 TSS2系列
TSS2系列 雙輸出數顯溫度開關用于控制加熱系統或冷卻系統的溫度。他采用了兩路輸入信號和獨立的繼電器輸出組成雙路系統。TSS2系列有34種可編程配置的參數來實現多種功能。除了設定點外，需要安全密碼才能配置參數。溫度探頭需另外購買。
兩個獨立的觸點輸出，加熱或冷卻控制
1
Probe Range: -58 To 302°F (-50 To 150°C).
Input: PTC Thermistor (1000Ω @ 25°C).
Outputs: One 16A SPDT Relay @ 250 VAC, Resistive; One 8A SPDT Relay @ 250 VAC Resistive.
Horsepower Rating (HP): 1 HP.
Power Requirements: 12 VAC/DC, 24 VAC/DC, 115 VAC, 230 VAC Depending On Model.
Accuracy: 1% Of Full Scale.
Display: 3-Digit And Sign, Red LED.
Resolution: 0.1° (<100°); 1° (≥100°).
Memory Backup: Nonvolatile Memory.
Ambient Operating Temperature: 32 To 158°F (0 To 70°C).
Storage Temperature: -4 To 176°F (-20 To 80°C).
Dimensions: 3 X 1-27/64 X 2-7/16 In.
Front Panel Rating: IP64.
Weight: 2.3 Oz (65 G).
Agency Approvals: CE, cURus.
